Contingency Plan for Pod CPU Utilization (Relative to the Limit) Exceeding the Threshold

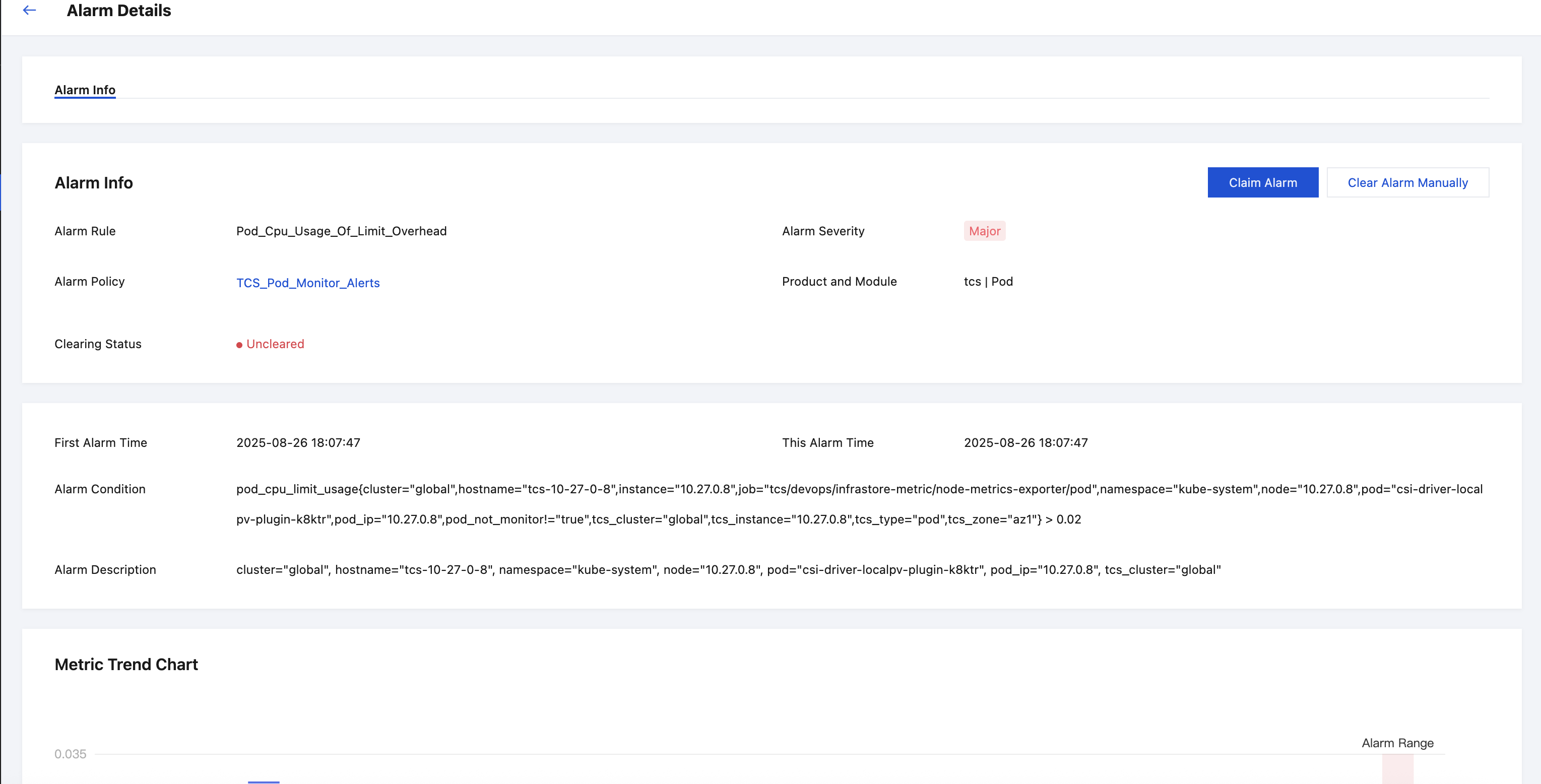

Alarm Description

Pod CPU utilization (relative to the limit) exceeds the threshold:

• Containers related to basic platform workload (cloud-tcenter): Due to certain abnormalities, CPU utilization becomes high, exceeding 95% of the configured limit.
• Containers related to audit log workload (t|ocloud-cloudaudit): Due to certain abnormalities, CPU utilization becomes high, exceeding 95% of the configured limit.
• Containers related to CAM workload (t|ocloud-tcenter-cam/tcloud-tcenter-support-cam): Due to certain abnormalities, CPU utilization becomes high, exceeding 95% of the configured limit.
• Containers related to tag workload (tcloud-tcenter-platform-tag/tcloud-tcenter-platform-wtag): Due to certain abnormalities, CPU utilization becomes high, exceeding 95% of the configured limit.
• Containers related to cloud API management workload (cloud-tcenter-yunapi3): Due to certain abnormalities, CPU utilization becomes high, exceeding 95% of the configured limit.

Alarm Attributes

Impact on the System

No impact.

Possible Causes

• The CPU resource limit assigned to the pod is too small and needs to be increased.
• The application may have abnormalities, causing its CPU usage to increase gradually and eventually exceed the limit. The program logic needs optimization.

Processing Procedures

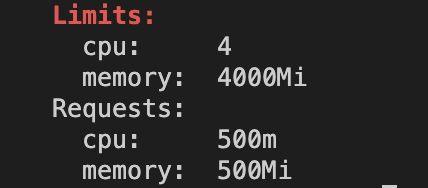

1. Check pod resource limits:

   • Basic platform workload***: kubectl describe pod -n tce cloud-tcenter-xxx | grep -A 5 'Limits:'***
   • Audit log workload: kubectl describe pod -n tce t|ocloud-cloudaudit-xxx | grep -A 5 'Limits:'
   • CAM workload: kubectl describe pod -n tce t|ocloud-tcenter-cam/tcloud-tcenter-support-cam-xxx | grep -A 5 'Limits:'
   • Tag workload: kubectl describe pod -n tce tcloud-tcenter-platform-tag/tcloud-tcenter-platform-wtag-xxx | grep -A 5 'Limits:'
   • Cloud API management workload: kubectl describe pod -n tce cloud-tcenter-yunapi3-xxx | grep -A 5 'Limits:'


2. View historical monitoring information of pod:
   Log in to the operation side, choose Monitoring System (CWhistle) > Cloud Product Metric > TCS/Pod, query the CPU utilization monitoring data of the Pod that triggered the alarm around the time the alarm was triggered or for a longer period, and determine whether the behavior is normal.

   Time Range	The day of the fault
   Monitoring Metric	pod_cpu_limit_usage
   Cluster	global
   Namespace	tce
   Pod	Basic platform workload: cloud-tcenter-xxx Audit log workload: Pod: t\|ocloud-cloudaudit-xxx CAM workload: Pod: t\|ocloud-tcenter-cam/tcloud-tcenter-support-cam-xxx Tag workload: Pod: tcloud-tcenter-platform-tag/tcloud-tcenter-platform-wtag-xxx Cloud API management workload: Pod: cloud-tcenter-yunapi3-xxx

3. Collect relevant information and contact the technical team for support.
