Function category

How to bind a CVM?

Users can enter the VPC console and bind the CVM.

How to configure a CVM?

After the Elastic Network Interface (ENI) is bound in the console, it needs to be configured in the CVM before it can be used normally. For details, see Bind and Configure CVM.

How to allocate private IP addresses?

The steps to allocate an private IP address to a CVM ENI are as follows:

1. Open the VPC console.
2. Click IP And Network Card > ENI in the left-side directory to open the Elastic Network Interface list page.
3. Click the Instance ID of the ENI to open the ENI details page.
4. Click IPv4 Address Management to view the private IP and Elastic IP (ElP) bound to the ENI.

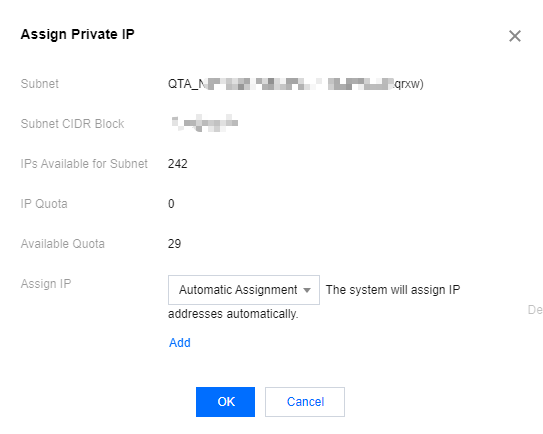

5. Click Assign Private IP and a pop-up window will appear to display the Assign Private IP window.
6. Select Automatically Assign or Manually Fill in the private IP.

7. Click Add and in the Allocate Private IP window, assign multiple IP addresses to the ENI.
8. Click OK to complete the console assignment of the private IP.

Note:

The private IP needs to be configured in the CVM before it can take effect.
