In the HAVIP console, you can view detailed information about all HAVIPs in the specified region.
Directions
- Log in to the VPC console.
- Select IP And Network Card > HAVIP from the left navigation pane to enter the Highly Available Virtual IP interface.

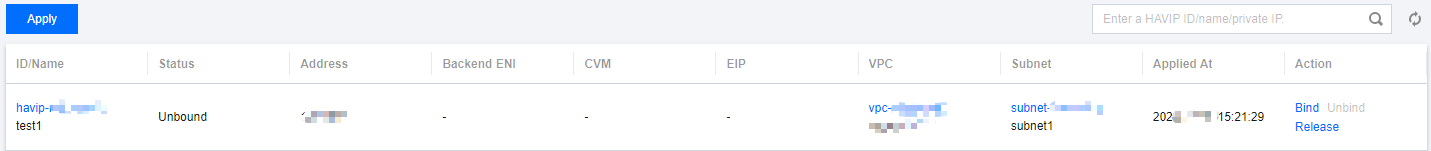

- View detailed information on all HAVIPs that have been applied for in this region.
The fields are defined as follows:
- ID/Name: After HAVIP creation, the system automatically generates an ID. Clicking the ID allows access to the basic information interface of the HAVIP. The name is a user-defined name during creation.
- Status: Indicate whether the HAVIP has been specified as a migratable VIP in the HA software configuration file of the cloud server. If configured successfully, the status displays as Bound to Cloud Server. If not configured or configuration fails, the status displays as Unbound.
- Address: HAVIP address.
- Backend ENI: The Elastic Network Interface (ENI) ID of the cloud server bound to the HAVIP. If the HAVIP is not bound to a cloud server, this field displays as -.
- CVM: The cloud server ID bound to the HAVIP. If the HAVIP is not bound to a cloud server, this field displays as -.
- EIP: The Elastic IP (EIP) bound to the HAVIP. If the HAVIP is not bound to an EIP, this field displays as -.
- VPC: The VPC where the HAVIP is located.
- Subnet: The subnet where the HAVIP is located.
- Applied At: The time when the HAVIP was applied for.
- Action: Operations that can be performed on the HAVIP, including Binding, Unbinding, and Releasing.
- Binding: Used to bind an EIP.
- Unbinding: Used to unbind an EIP.
- Releasing: Used to release the HAVIP.
- In the search box on the right side, you can enter the ID, name, or internal IP address for quick search.
- Click the refresh icon in the upper right corner to refresh the interface.
