Tenant Cloud Network VPN Connections Quick Start

Step 3: Creating a VPN Channel

Last Updated At: 2025-10-30 15:55:00

  1. Log in to the cloud platform and select Cloud Products > Cloud Computing & Networking > Virtual Private Cloud to enter the Virtual Private Cloud console.
  2. In the directory on the left, click VPN Connection > VPN Tunnel to enter the VPN Tunnel interface.
  3. Select a region and Virtual Private Cloud, and click Create.

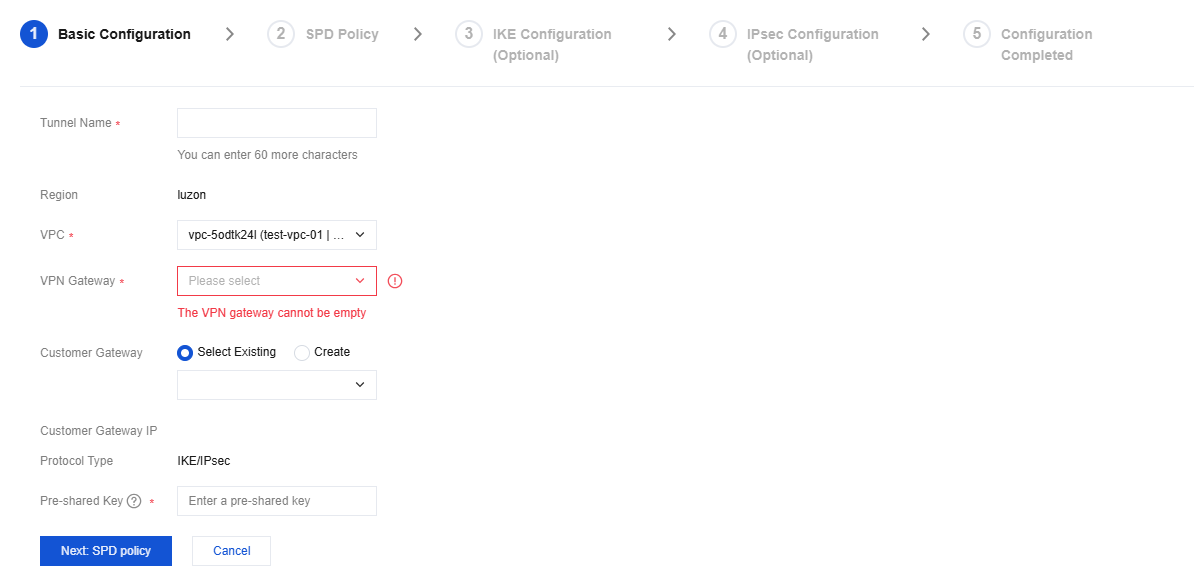

  4. Enter the channel name (for example, TomVPNConn), select TomVPNGw as the VPN gateway and TomVPNUserGw as the customer gateway, and enter the pre-shared key (for example, 123456), and click Next: SPD Policy.
  5. Enter the SPD policy to match the local IP range with the customer IP rang. In this example, the local IP range is the IP range 192.168.1.0/24 of subnet A, and the customer IP range is 10.0.1.0/24. Click Next: IKE Configuration.

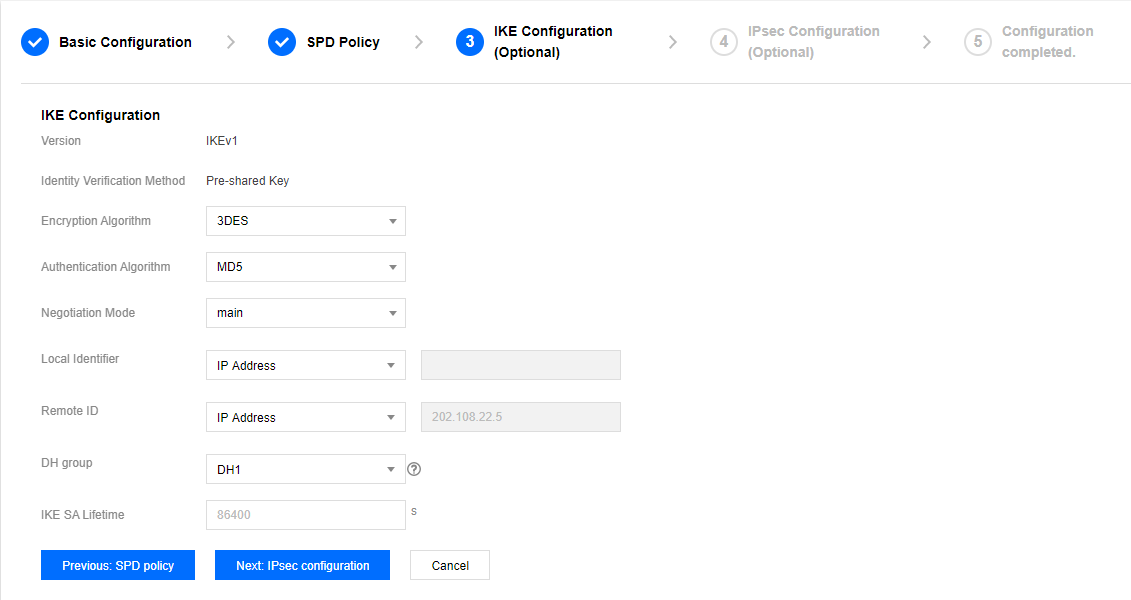

  6. (Optional) Configure IKE parameters. If advanced configuration is not required, click Next: IPsec Configuration.

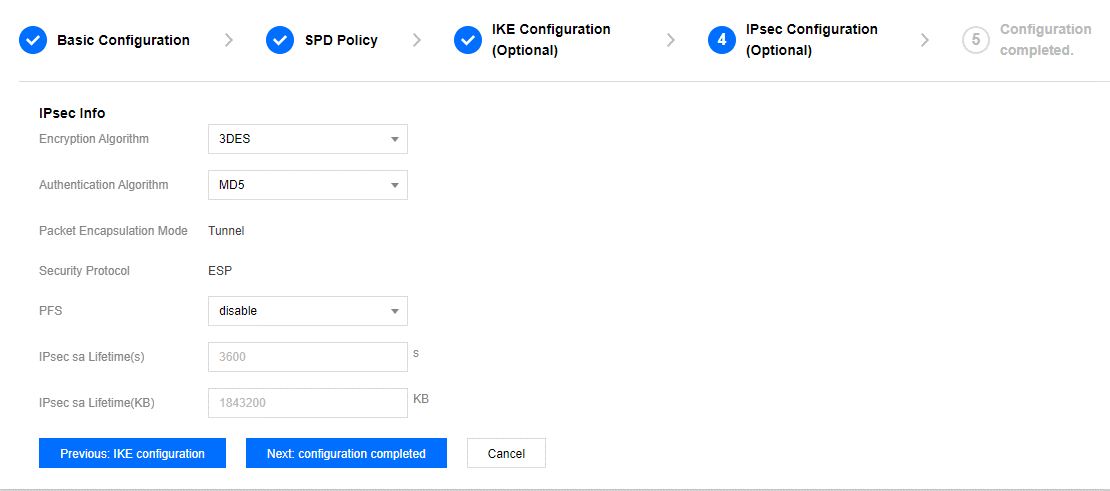

  7. (Optional) Configure IPsec parameters. If no configuration is required, click Next: Complete Configuration.
  8. After successful creation, return to the VPN channel list page, click Download Configuration File to download the file.
